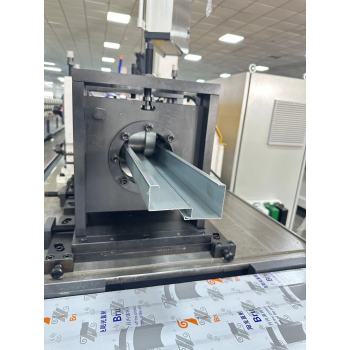

Steel door frame machine
- group name
- Roll forming machine
- Min Order
- 1 piece
- brand name
- DOORMAN
- Nearest port for product export
- SHANGHAI, NINGBO
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union
- update time
- Sun, 22 Dec 2024 01:19:07 GMT
Packging & Delivery
-
Min Order1 piece
Briefing
Uncoiling—Guided Feeding&Lubricant Device—Roll Forming—Hydraulic cut—Collecting Table
Detailed
Number | Items | Unit\Type | RF-DF |
|---|---|---|---|
1 | Steel Thickness | mm | 0.6-1.8 |
2 | Forming Speed | m/min | 8-12 |
3 | Roller stands | stand | 18 |
4 | Roller Material | 45# steel, coated with chrome | |
5 | Main Motor Power | Kw | 11 |
6 | Hydraulic cutting Power | Kw | 4 |
7 | Hydraulic pressure | Mpa | 10 |
8 | Power Supply | 380V, 50HZ,3 phase | |
9 | Tolerance | mm | 1.5 |
10 | Material of cutting | Cr12 | |
11 | Control system | PLC with touch screen | |
12 | Machine net weight | T | 8 |
