All-in -One Shaft motor
- group name
- Industrial& Commecial door motor
- Min Order
- 1 piece
- brand name
- DOORMAN
- model
- All-in-One SFO 100/ SFO120/ SFO 150
- Nearest port for product export
- SHANGHAI, NINGBO
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union
- update time
- Wed, 04 Dec 2024 02:01:32 GMT
Paramtents
color black and orange,or as per required .
Working Voltage 24VDC
coding Rolling /Fix code
Speed（R/min） 11
Packging & Delivery
-
Min Order1 piece
Briefing
Within Emergency release when power failure
Soft start & Soft stop
Requires very small installation space
Lower noise
Soft start & Soft stop
Requires very small installation space
Lower noise
Detailed

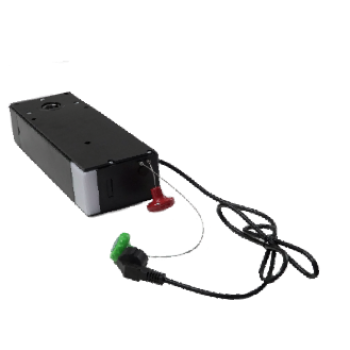

Name：Shaft motor
Item No.: IMPROVE (can be printting with any color you like ,Logo printting is availiable .
Technical Specifications
| Model No. | Model No. |
|---|---|---|
| SFO-120 | SFO-150 |
Power | 100W | 200W |
Voltage | 220V/110V | 220V/110V |
Motor Voltage | 24VDC | 24VDC |
Motor Torque | 8N*M | 12N*M |
Output Torque(N*M) | 24N*M | 32N*M |
Speed（R/min） | 11 | 11 |
Max. Output circle | 10 | 10 |
Working class | S2 | S2 |
Output shaft | Dia 25.6 | Dia 25.6 |
Manual release | Yes | Yes |
Airbag connector | Yes | Yes |
Fire coupling | Yes | Yes |
Output Force（R40mm） | 63KG | 85KG |
Frequency | 433.92MHZ | 433.92MHZ |
Coding | Rolling /Fix code | Rolling /Fix code |
Door size | ≤12 ㎡ | ≤12㎡ |
